Server-Side Languages 1

To date, most of my blogs have dealt with topics related to the client-side aspect of web development.  We looked at some basic HTML, how to style our pages using cascading style sheets (CSS) and how to add dynamic content using javascript.  It's now time to divert our attention to the server-side, specifically server-side scripting using PHP.

Server-Side?

Before tackling server-side scripting let's take a step back and have a high level look at how the web works.  Whenever you navigate to a new web page, your browser is effectively sending an HTTP request to a web-server over port 80.  The server then responds by sending the requested web-page or an error message (if the page was not found for instance) which the browser then displays.  This is known as the client-server model where the client is your browser and the web server is, you guessed it, the server.  Server-side scripting is a technique where the server executes some code (scripts) while processing a request to generate dynamic content  which is then sent back to the browser.

There are many server-side languages such as ASP, PERL and PHP and others.  The choice on which to use largely depends on your what you're trying to achieve and what would be best suited to your current environment.  There are other aspects to consider such as platform in/dependence, interoperability with other systems (e.g. databases) and security.  Having said that, any detailed comparisons between technologies goes beyond the scope of this blog which will instead focus on PHP.

At this stage I would like to emphasize that I have just started learning PHP (my professional background lies in ASP and ASP.Net) and that the purpose of my next couple of posts is to share this learning experience.  This first post will mainly focus on how I went about setting up my development environment.

Setting-Up

First thing I did was to visit www.apachefriends.org to download the XAMPP installer.  XAMPP is a distribution of the popular Apache web-server that also includes MySQL, PHP and Perl.  This will spare me the headache of manually configuring Apache with MySql and PHP.

Given that I wanted to simulate the client-server model on my machine I installed XAMPP on a virtual machine which will act as my web-server.  This is where I hit my first hiccup.  The virtual machine I'm using as a web server is running MS Windows Server 2008 with User Account Control (UAC) turned on for security.  The XAMPP installer promptly suggests that, given the security constraints imposed by UAC, I should either disable UAC or install XAMPP to a location other than the "Program Files" folder.  Naturally I opted for the latter as I was not particularly inclined to disable UAC so I installed XAMPP to "C:\XAMPP" on my virtual disk.

First Contact

Once the installation was complete, I went ahead and started the XAMPP control panel and I immediately ran into another problem.  The control panel reported that it should only be run from the XAMPP root directory (Status Check Failure [3] error), which in my case is "c:\XAMPP\" which is exactly where it was being executed from!  I cleared the error message and attempted to start the Apache service from the contol panel with no success.  I noticed that the control panel was attempting to start Apache on port 80 and it suddenly dawned on me that I had to change the port number since I had IIS (this is a windows server after all) listening on port 80.  To change the port number bound to Apache:

• Open c:\xampp\apache\conf\httpd.conf file.
• Find and change the "Listen 80" entry to "Listen 8080" (8080 is the port I chose)

I once again attempted to start apache but it still would not work.  At this point I referred to the Apache Friends forum to see if the problem was related to the "Status Check Failure [3]" error  I was getting when starting the XAMPP control panel.  Strangely enough, the solution I found was to uninstall XAMPP, and "re-install" it by downloading and extracting the "ZIP archive" version to the same root directory as before (c:\xampp).  Once again I changed the port number and started the XAMPP control panel.  This time no error was reported and Apache started successfully.

Testing the installation

Following that strange solution I wanted to make sure that everything was running as expected.  I started the browser and navigated to "http://localhost:8080" which thankfully displayed the XAMPP default page.

Next I verified that all the necessary components (MySql, PHP, SSL, SSI and FTP) were working correctly by browsing to the XAMPP Status page:

XAMPP Status page showing component status

I also accessed the XAMPP Security report and realised that by default, everything is unsecured, something I will definitely tackle sometime soon.  Further checks included having a look at the PHPInfo report and making sure that the sample guest-book worked correctly, which it did.

Summing Up

All in all this was quite a different experience for me.  I have never used, let alone configured Apache before since my professional experience lies in MS Internet Information Services (formerly Internet Information Server) and ASP/ASP.Net.  Besides that strange "root directory" error and its equally strange solution, installing and configuring Apache with MySql and PHP proved to be very easy using XAMPP and I'm considering setting up another virtual web server, this time using Linux to compare the installation process and results.  I'm especially curious what the default security settings would be on Linux.

In my next post, I will be customising the XAMPP default web page and attempt to access the web server from my host machine.

Readmore...

My Two Cents on Accessibility

I had the opportunity today to listen to a very good presentation on accessibility and how websites can be made more accessible.  The key word here is 'can'.  Indeed you can and should make your website more accessible for two simple reasons.  First of these is a no-brainer, accessibility means just that, making your pages accessible to a wider audience.  Secondly however, most of the techniques and tricks used to increase accessibility are also best practice:

• Table-less layouts - better for screen readers but also helps separate content from layout
• Clear and meaningful 'alt' and 'title' tags - a must for screen readers but also provide useful tooltips
• Correct use of  HTML headings - good semantics = better structure = better accessibility
• and so on

I always thought of accessibility from a visually impaired person's perspective.  However, after today's presentation, I've come to realise that vision is not even half the story.  Cognative disabilities, motor disabilities as well as hearing impediments must also be considered when working on improving your website's accessibility.  Providing adequate space between elements is something I often overlook but is vital to someone with motor disabilities.  Flashing colours, animations, tickers, sudden sounds can all prove to be too much for persons that have trouble concentrating.  And its not just a case of providing a text only version of your page.  Most people still want to enjoy the whole experience of the website, they just want more control over the page.  Providing functionality to stop tickers or turning off sounds doesn't take much and goes a long way to improving the user experience.

I also had the opportunity to see some clips of people with various disabilities speaking about their experiences and wanting to smash the computer out of frustration.  This was a real eye opener for me.  Speaking to such people and having them test your website is now in my opinion invaluable in getting the right feedback about the experience your website provides.

Readmore...

XML Basics

In today's post I will be discussing the basics of XML and why it has become so important for the web.

What is XML?

XML stands for eXtensible Markup Language and was primarily designed as a means of "carrying" or storing data.  As its name implies, XML is a markup language which means that "tags" or "elements" are used to structure the data within the document.  In contrast to HTML (another markup language), where elements are pre-defined, in XML you define your own elements.  Consider the following example where we would like to store the following information about student projects as an XML document:

• Student Name
• Student ID
• Project Title
• Project Category
• Project Abstract
• Date Submitted

One way of structuring this data in XML would be the following:

In the example above, an element was defined for each data item that we needed to store and the actual data is placed between each element's opening and closing tags.  You may also notice that the <project> tag encapsulates all of the other elements.  Besides giving more meaning to the data, this element is also necessary because an XML document must always have one root element (more on validation later).

Taking it Further

In the previous example we can see that "student_name" and "student_id" both relate to a student while the rest of the elements relate to the project.  Also, since an XML document can only have one root element, the current structure prevents us from storing information about multiple projects.  With this in mind, here's a better way of structuring the document:

By adding the <projects> root element we can now have multiple <project> elements within the document and student-related information has also been nested (grouped) within the <student> element.  Finally, the <date_submitted> element has been broken down further into the <day>, <month> and <year> elements, which at first glance seem superfluous.  Consider however a scenario where you wanted to share this data with another system over the web. This system may or may not have the same date format as your system.  Breaking down the date into its constituent parts makes sure that the date is interpreted correctly.  I'll be discussing the advantages and practical uses of XML later on in this post.

XML Attributes

We have already seen how to define and use XML elements, however XML elements can also have attributes (like HTML).  Attributes are generally used to store information about the data within the element - I like to think of attributes as an element's metadata.  Attribute values must be enclosed within quotes and defined within the element's opening tag, just like in HTML.  Taking the previous example, the project category can be considered to be information describing the type of project and is a good candidate for an attribute:

Here, the category elements have been replaced by the category attributes of the project elements.  There is no real difference between the two examples as both XML documents contain the same data.  So when should we use attributes?  Opinions on the subject vary.  Some say that XML attributes are useful others say that they should be avoided.  My view is that it all depends on how extensible you want your XML document to be.  Keep in mind that XML elements can be nested, so an element that today holds a single value can be changed to store multiple values some time down the line.  Conversely, XML attributes can only store one value and will have to be changed to elements if the need to store multiple values arises which may have an adverse effect on systems that consume your XML documents.  In a nutshell, some careful planning and thinking ahead needs to be done when deciding between elements and attributes.  My rule of thumb is to use elements whenever in doubt.

Basic XML Validation using DTD

An XML document having correct syntax is said to be "Well Formed" but is not necessarily valid.  Besides being well formed, an XML document must also follow rules that define its structure for it to be valid.  One way of defining the structure of an XML document is by using a Document Type Definition (DTD).  XML documents can also be validated using XML Schemas but for the sake of simplicity, I will only be loking at DTDs in this post.

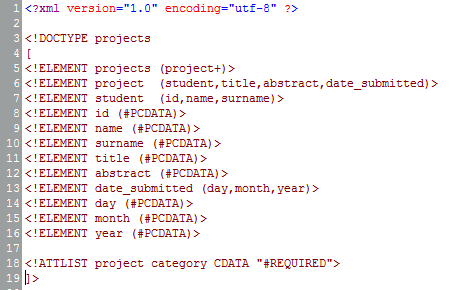

A DTD defines the structure of the XML document by providing a list of elements and attributes that are valid or "legal" within the XML document.  Using the projects XML document discussed above as an example, the following DTD can be used to validate the document:

Line 3 states that this DTD applies to the "projects" document type which is our XML document root element.  Lines 5 to 16 list the legal elements that are expected within the XML document. Looking closer, Line 5 states the projects element (our root element) must have one or more occurances of the <project> element (the '+' sign indicates one or more).  Similarly line 6 states that the <project> element must have exactly one occurance (no '+' sign) of each of the <student>, <title>, <abstract> and <date_submitted> attributes.  The DTD also specifies that the lowest level elements such as id, name and surname contain PCDATA or Parsed Character data. In other words, the values of these elements will be parsed by the XML parser to check for entities and other markup.  Conversely, if CDATA (Character Data) was used,  the values would not be parsed and accepted as is.  Line 18 also specifies that the <project> entity must have (#REQUIRED) a "category" attribute of type CDATA.

The DTD can be defined within the XML document (as the example above) or as a separate file.  If used as a separate file, the <!DOCTYPE>" declaration should be written as "<!DOCTYPE projects SYSTEM 'DTDfilename'>".

The Importance of XML

As hinted earlier in this post, the fact that XML is text based makes it a truly platform independent way of storing and sharing data.  This is especially important for sharing data between applications over the web, where more often than not these applications are incompatible with one another.  XML also makes your data more available, in the sense that it can be consumed by any number of services and devices.  XML is also being used to create new languages.  XHTML, RSS, WSDL and more recently XAML are all based on XML.

Just the Beginning

In this post, we have just scraped the tip of the proverbial "iceberg" with respect to XML.  There are many other topics to explore including XML Transformations, XML Schema Validation, XML in web services and many more.  Hopefully, I will have the opportunity to cover XML in more detail in future posts.

Readmore...

Javascript Animation 2

In my last post I built a simple animation of a man running around a webpage.  We also saw some simple collision detection techniques to make the man bounce off the edges of the screen.

In this post, I will continue building on this project by adding functionality to throw obstacles at the runner.   I also want the runner to change direction after hitting an obstacle and the obstacle itself should disappear after being hit.

Adding Obstacles

The first thing we need to do is write a function that places an obstacle on the screen.  To do this we need to access the document object and append image elements (representing obstacles) to the DOM tree.

The 'createObstacle()' function above creates a new image element at line 134 and sets various attributes such as the image source and css class name using the setAttribute() javascript function.  The 'obstacle' css class specifies that the image is 50px square in size and that it is absolutely positioned on the screen.  Using the Math.random() function I generate co-ordinates to position the obstacle randomly on the screen.  I also randomly select the image source of the obstacle from the pre-defined 'obstacles()' array.  Finally I append the new image to the 'canvas' <div> using the appendChild() method.  Finally I can wire this function to the 'place obstacle' button in the control panel.  Now, every time the button is pressed, a random obstacle is placed on the screen.

More Collision Detection

I want my runner to change direction when he 'hits' an obstacle and I also want that obstacle to disappear with a bang!  Here's the modified collisionDetect() function first introduced in my previous post:

The first thing I do in the obstacles section of this function is to get an array of all the images contained in the canvas <div> using the getElementsByTagName function.  Next I loop through the array and if the image is an obstacle I compare its co-ordinates to that of the runner.  If they intersect I call the 'createBlast()' function, passing the obstacle as a parameter and switch the direction of the runner.  We'll now look at the 'createBlast()' function which removes the obstacle after making it 'explode'.



The idea behind the 'createBlast()' function is to display an image of an explosion instead of an obstacle just after it is hit.  I once again use the 'createElement()' javasacript function to create the blast image and set its co-ordinates to that of the obstacle being hit.  This time however I use the replaceChild() javascript function instead of 'appendChild' such that the blast image replaces the obstacle.  I want the blast image to disappear after 100 milliseconds so I use the 'setTimeout()' javascript function to trigger the 'clearBlast()' function.  I needed to pass the blast object to the 'clearBlast()' function but this cannot be done using normal syntax.  Hence I used a technique called 'closure' to get the desired effect.  Closure is one of the most powerful features of javascript and fully explaining it goes way beyond the scope of this post.  Put simply however, closure allows you to create functions within functions where the inner functions have access to all the local variables of the outer function.

Conclusion

That's it.  We now have an animation of a man running around the screen, hitting objects thrown at him and bouncing off the edges of the screen.  Here's what the finished product looks like:

During these last two poists we looked at how we can use timing functions as a basis for animation and how to manipulate the DOM tree to add and remove nodes at runtime.  We also saw how to randomise certain aspects of the functionality (such as positioning the obstacles) and even some basic collisionn detection.

Overall it was a pretty enjoyable exercise with plenty of opportunity to experiment with various javascript techniques.  I hope you enjoyed reading it as much as I did coding it.

Readmore...

Javascript Animation

This week, we will see how we can use javascript to create simple animations on your web page.

To demonstrate this, I'll be creating an animation of a running man where the user can:

• control the speed of the animation
• change the direction of the animation, and
• throw obstacles at the runner

I will also demonstrate some simple collision detection techniques such that the animation does not 'run off' the screen but rather 'bounces off' the edges and changes direction.

The HTML

For this task I wanted to split the page into two sections, the top section will serve as a 'canvas' or boundary for the running man animation while the bottom section will display all the necessary controls.

To do this, I will create two <div> elements named 'canvas' and 'control panel' where the former will contain the running man image and the latter will contain the controls:

The controls are a combination of HTML anchor elements, styled to look like buttons, and a 'select' element to allow the user to change the animation speed from a drop-down list.  The controls are laid out using an HTML table and after some CSS styling this is what the page looks like:

The focus of this blog is the javascript code behind the animation so I will not be going into detail on how the page has been laid out and styled.  The techniques used have all been covered in my previous posts.

The Code

As a basis for my animation I will be using 11 images (or frames) each of which is showing the man at a different 'stage' in the run.  The principle behind this animation is to change the source of the image element over time, displaying each frame in sequence, to simulate a running man.

So, let's get started.  The first thing we need is an array to store the path of each frame in the animation:

 Line 11 defines a new array called 'rightRunner' which is populated using a for loop.  Each element in the array now represents a different frame in the animation.  I chose to call the array rightRunner because initially, the man will run to the right.

Next we need a method that will change the source of the animation image:

 Each time the marathon() method is called, the src attribute of the animation image changes to the next frame in the array.  The curRunner global variable is used to keep track of the current frame and whenever it reaches 10, it is reset to 0 such that the animation loops from the begining. For the animation to work, we need a way of triggering this method over time and the 'setInterval()' javascript method allows us to do just that.  The setInterval method requires two parameters: a reference to the function to be executed and the interval (in milliseconds) between function calls. We can also use the 'clearInterval' method to stop the animation.

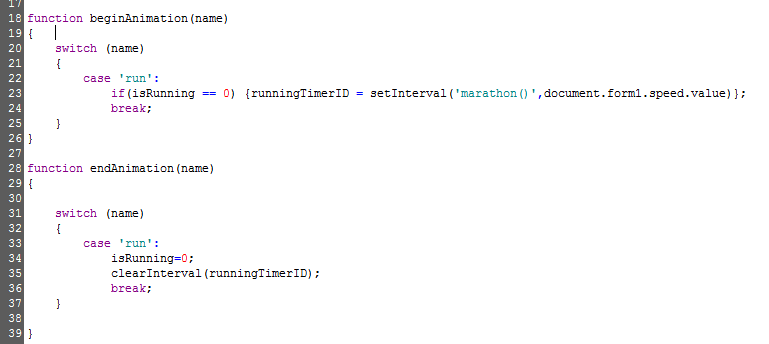

The above code snippet shows the two functions I will use to start and stop the animation(s).  Since I will be adding more animations later, I'm using switch statements to determine which of these animations to start/stop.  Line 23 calls the setInterval method on the 'marathon()' function and the interval is set to the selected value of the animation speed drop-down list box.  The returned ID is stored in the runningTimerID global variable which is then used to stop the animation at line 35.  I am also using the 'isRunning' global variable to ensure that the animation is started only once.  Next I will wire these two functions to the start and stop buttons:

We now have the basic animation in place upon which we can start adding the other features.

Adding Movement

At this stage when we start the animation the man seems to be running on the spot.  We will now add movement to make the animation more realistic.  To achive this I will be changing the position of the image during the animation to give the impression that the man is running around the screen.

First we need to make sure that the image is 'absolutely' positioned on the screen by setting the 'position' CSS property of the image to 'absolute'.  This will allow us to explicitly set the X and Y co-ordinates of the top left corner of the image to the position we want.

Next we need a function that will set the direction of movement and depending on the direction, we will need to add or subtract from the x and y co-ordinates of the image.

The 'setDirection()' function above changes the value of the 'xMultiplier' and 'yMultiplier' global variables depending on the selected direction of movement. (This function is wired to each of the directional buttons in the control panel shown in the screenshot at the top of this post.)  I can now use these multipliers to determine whether to increment or decrement the x and y co-ordinates of the image in the 'marathon()' function:

Now, whenever the marathon() method is called we first get the x and y co-ordinates of the image through the 'left' and 'top' css style attributes.  Then we add or subtract 10 pixels from these values depending on the x and y multipliers and set the new values, effectively changing the position of the image.  I also added a new array of images called 'leftRunner' to be used when the image is moving towards the left.  These images are horizontally-flipped copies of the original images used so far.  You may also notice that I'm using a 'getValue' function to get the position of the image.  This small function basically removes the "px" suffix from the value of the left and top attributes.

Collision Detection

So far we have an animation of a man running around the screen where the speed as well as the direction of movement can be changed at any time.  We now need to add some simple collision detection to make the animation change direction whenever it hits an edge of the screen instead of running off it.

The 'collisionDetect()' function above takes the x and y co-ordinates of the animation image as parameters and determines whether the image has reached either the left, top or right edges of the screen.  It also checks whether the image has reached the bottom edge of the 'canvas' <div> which is set to 350px.  Whenever any of these boundaries is reached, the corresponding multiplier is reversed effectively changing the direction of movement.  One thing to notice here is that I used the document.body.clientWidth property to determine the position of the right edge of the screen.

The collisionDetect() function is called from the marathon() function just before calculating the image's new position.

We now have an animation of a man running around the screen, bouncing off the edges and changing direction automatically.

In my next post I will add the functionality to throw obstacles at the runner and look at how we can use DOM from javascript to manipulate the document.
